Magnum 2750

Power Catamaran Centre Console Version

Overall Length

8.5 m
27.88 ft

Draft

0.55 m
1.80 ft

Displacement

4 500 kgs
9 920 lbs

Magnum 2750

Power Catamaran Centre Console Version

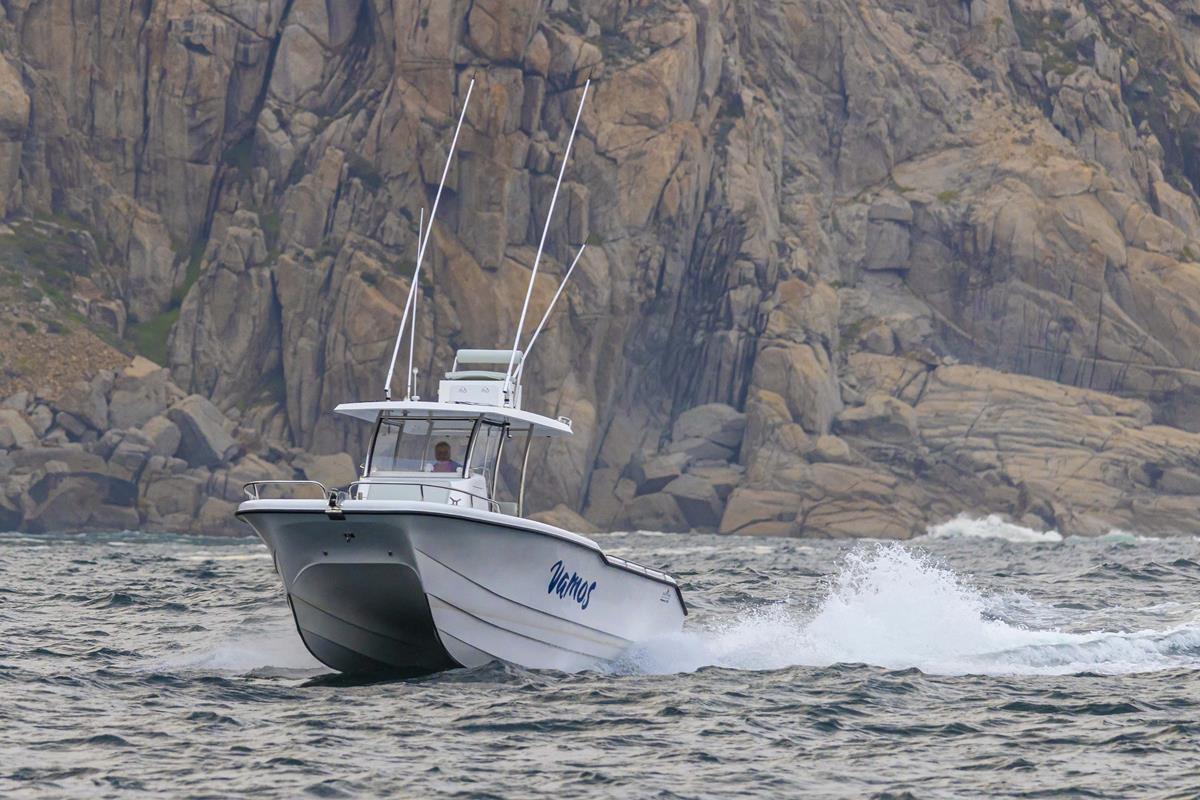

Launched in September 2019, the Magnum 2750 Centre Console is the latest addition to the Magnum Power Catamaran range — following the success of the Walkaround model, introduced in February 2018.

Designed for tropical climates where enclosed cabins can become hot, this versatile vessel is ideal for fishing, diving, or island hopping. The centre console features a solid bimini, fixed side windows, and an opening front windscreen. Ample console storage can be customised for tackle, or include a heads compartment.

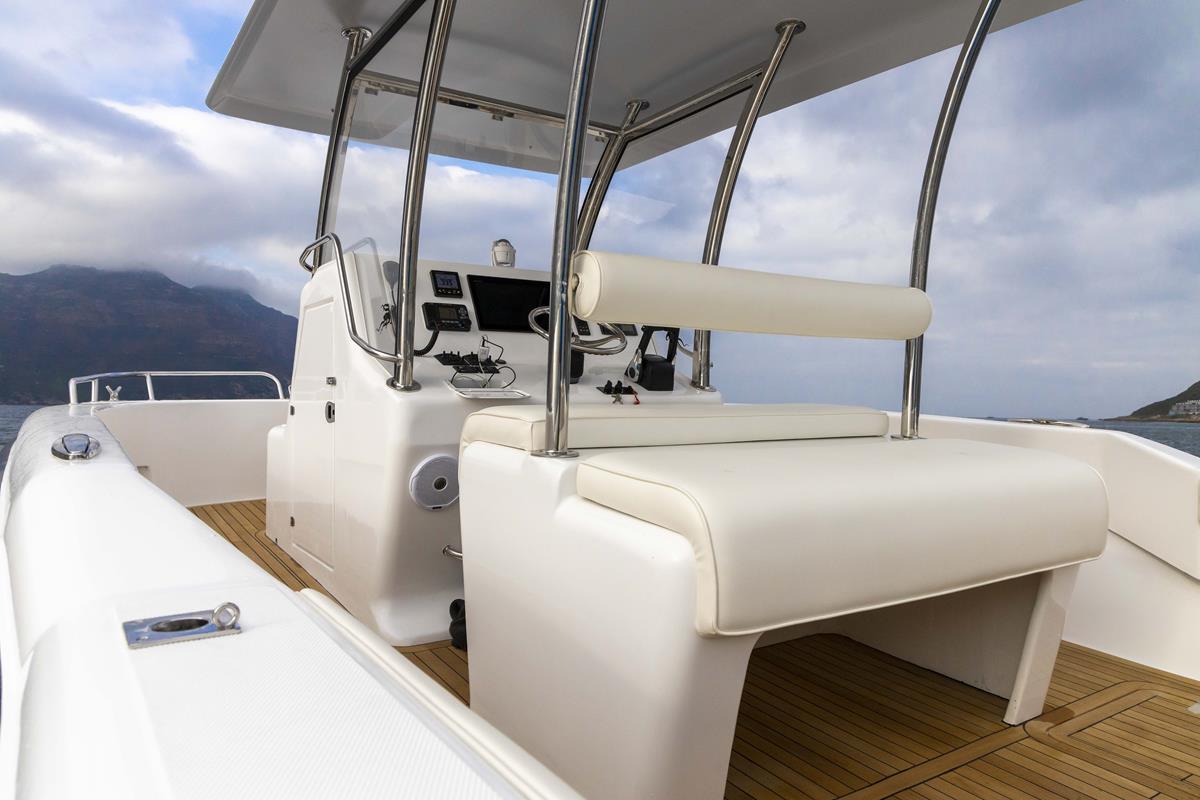

The helm comfortably seats three people — with space for three more facing aft. The aft deck is fully customisable, with options like a table, or fighting chair for game fishing.

Built to handle the Cape of Storms, the 2750 features high-density foam-filled hulls for safety and durability. Its catamaran design ensures excellent stability and a dry, soft ride—perfect for serious anglers and leisure cruisers alike.

Gallery

SPECS

DOWNLOAD BROCHURE

Principle Dimensions

LOA: 8.5 m
Beam: 2.9 m
Draft: 0.55 m
Boat weight – operational:+/-   4500 kg
Fuel – Standard capacity:  450 litres
Min H.P. (O/B 30-inch shaft): 2 x 200HP
Max H.P: 2 x 300 HP

Aft Deck

  • Self-draining

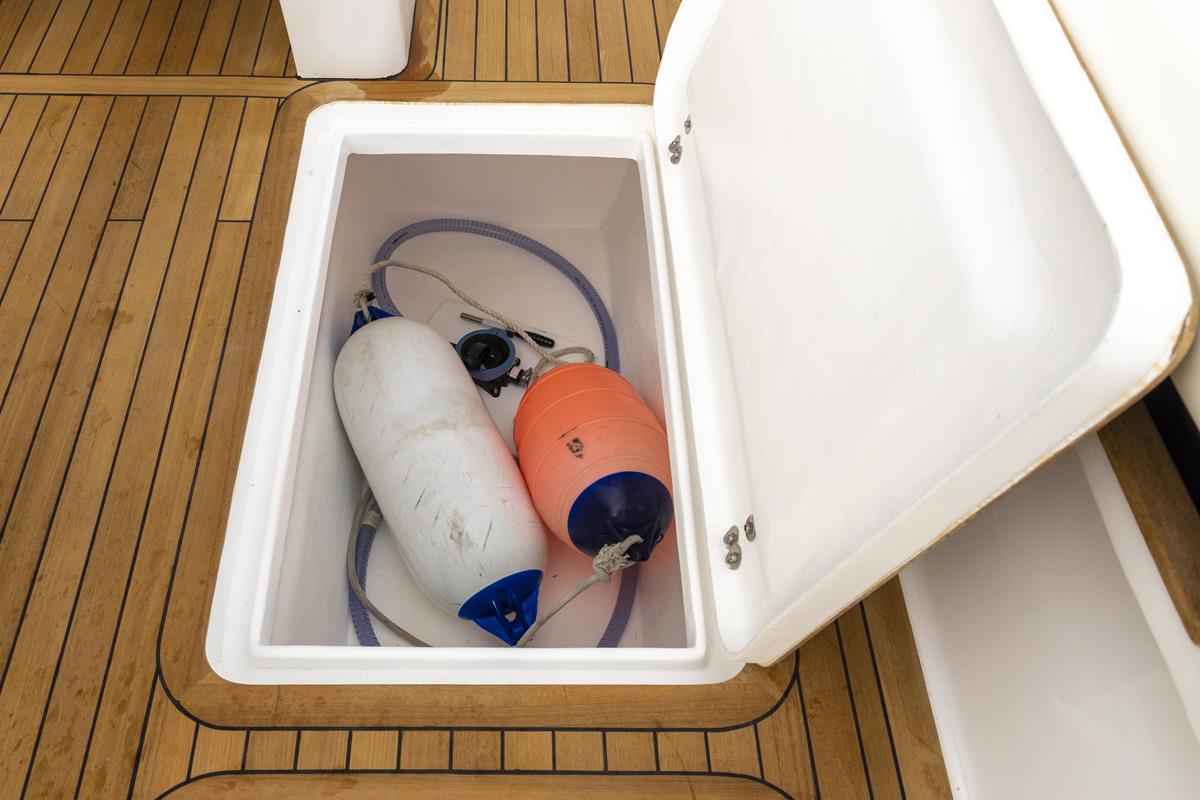

  • Two below-deck storage (fish) hatches

  • 2 x cut-outs located on gunwales for storage of lures, knives, etc.

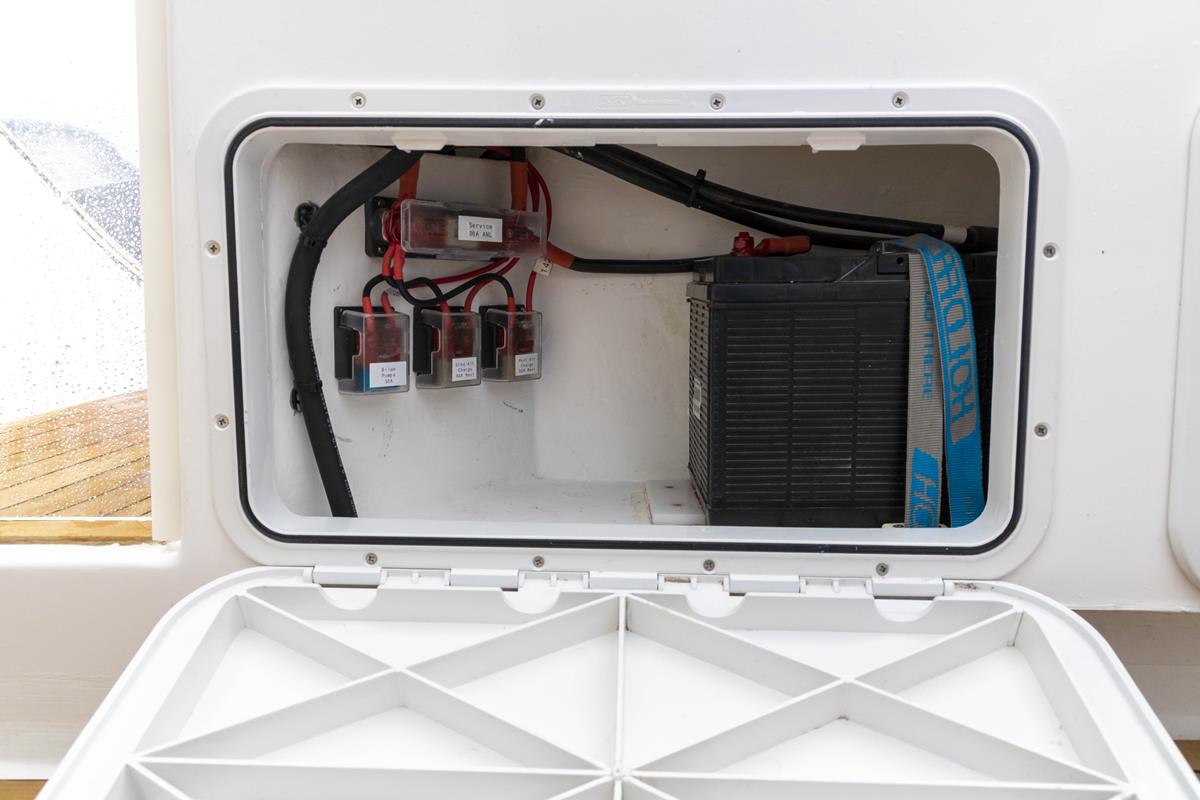

  • Access hatches to battery storage on hull sides

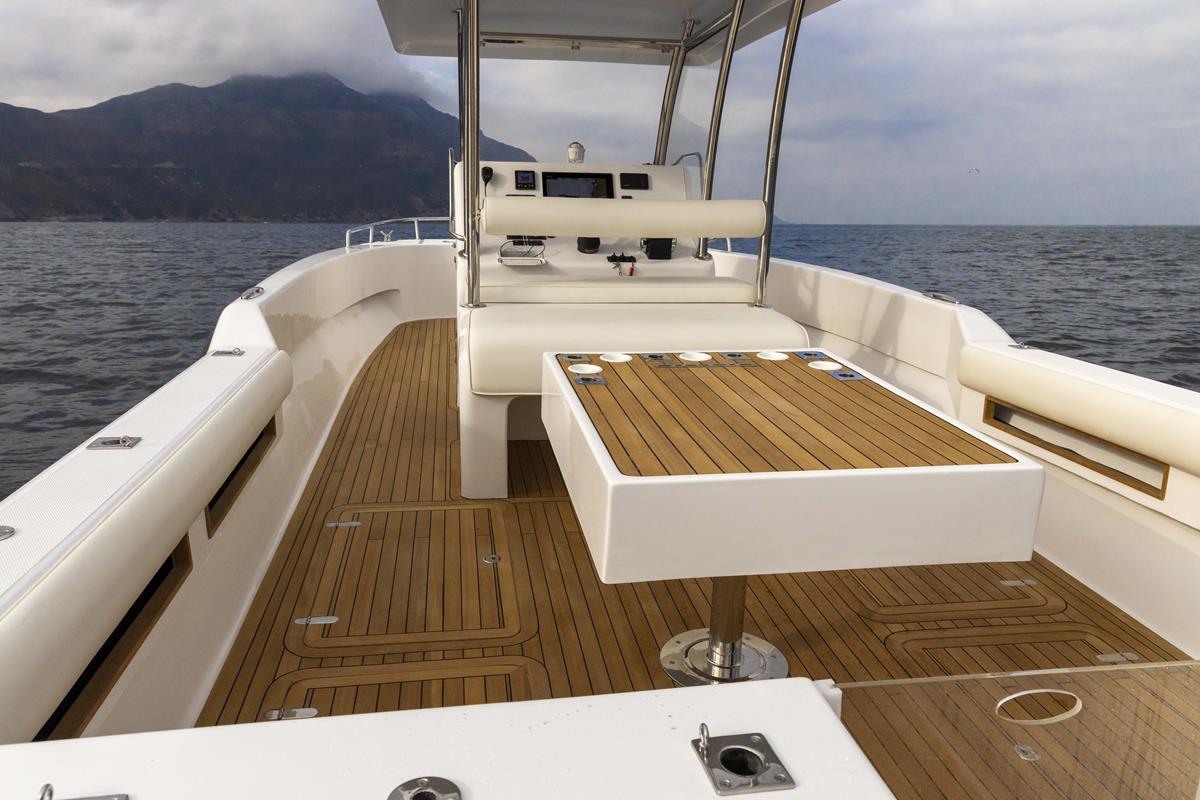

  • Deck-mounted fighting chair pole with table on top

  • 2 x automatic bilge pumps for hull drainage

  • 2 x electric drain pumps for drainage of below-deck (fish) hatches

Centre Console

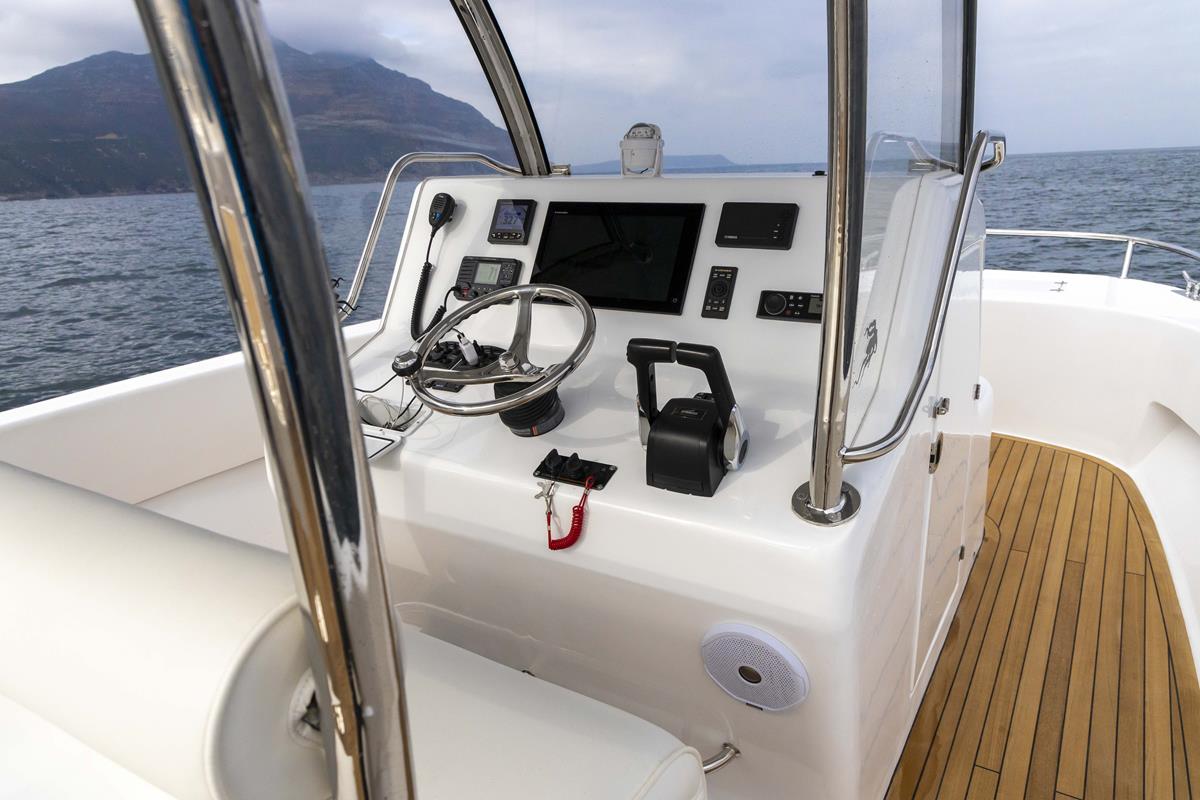

  • Central steering console housing hydraulic steering pump, engine controls, and engine instrumentation

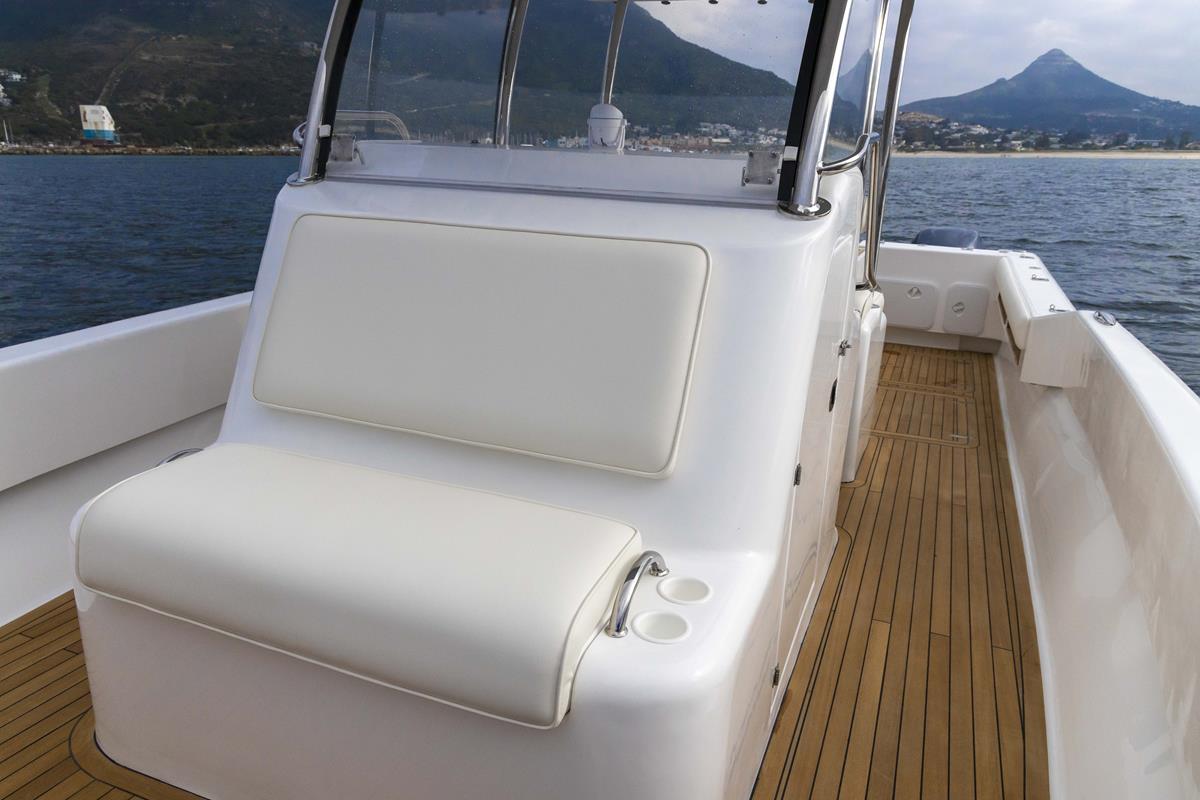

  • Upholstered leaning post with built-in storage locker below for cool boxes, etc.

  • Starboard access door to storage cupboard capable of accommodating a marine head

  • Port access door to storage area with shelves

Forward Deck

  • Moulded non-skid surface with safety rails

  • Anchor locker – self-draining, ahead of collision bulkhead

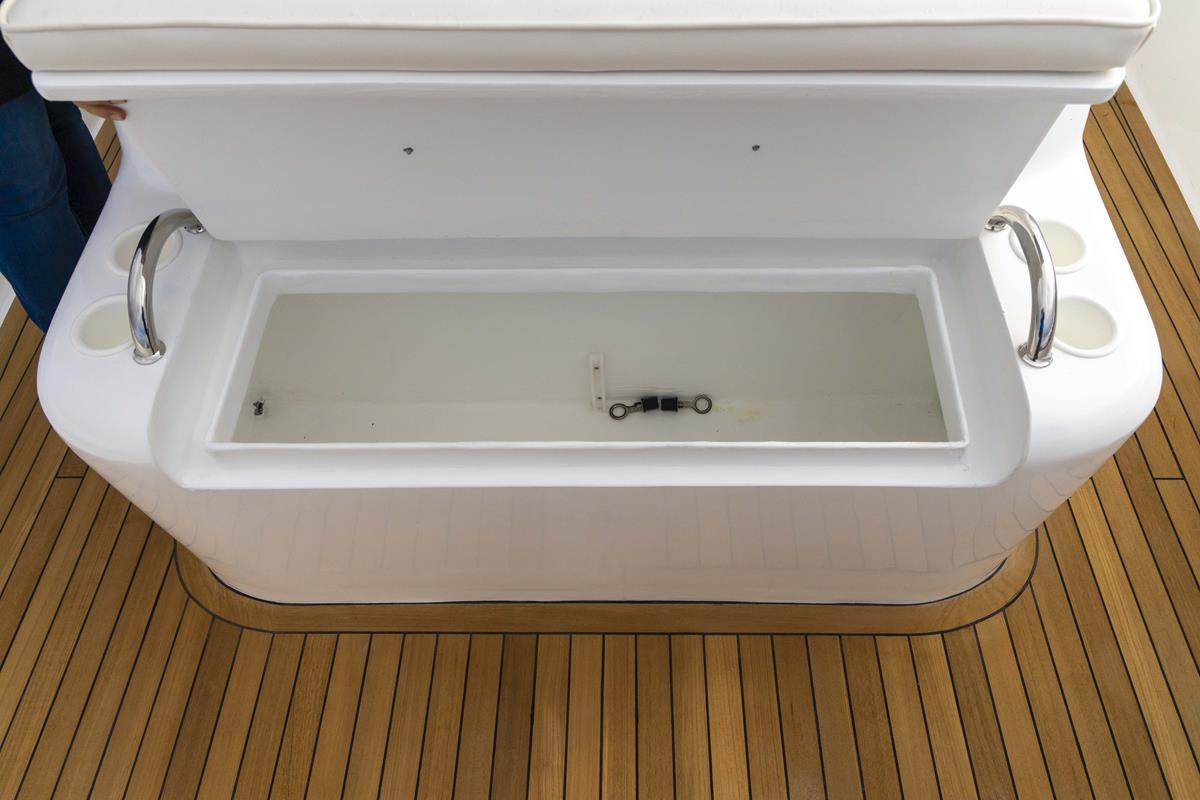

  • Upholstered seat with insulated cooler box below

Fuel System

  • 2 x aluminium fuel tanks constructed to marine specifications, complete with full baffles, inspection plate, isolating valve, fill, suction, and vent lines

  • Usable volume per tank approx. 230 litres

  • Remote level gauges located at control station

  • Water separator filters and engine primer valves located in storage hatches on aft deck

  • Marine-approved flexible fuel piping used throughout

Electrical

  • 2 x heavy-duty 100 amp Delco engine start batteries with isolating switches

  • Marine-grade switch panel with circuit breakers connected via bus bars

  • Marine-grade silicone-tin wiring

  • Navigation lights – LEDs

  • Anchor light – LEDs

  • Bilge pumps (as specified above) wired through the switch panel, with integral float switches hot-wired to house batteries

  • Deck wash pump

Stainless Steel

  • All fittings are marine-grade 316 stainless steel, welded and polished

  • Bow rail

  • Strategically located handrails

  • T-top with 8 x storage rod holders

  • 8 x gunwale-mounted rod holders

  • 6 x star flat sockets

  • 4 x star flat rod holders

  • 1 x anchor bollard and roller guide

  • 4 x heavy-duty deck cleats

  • 1 x heavy-duty bow eye

  • 2 x heavy-duty transom eyes

Electronics

  • Single station Furuno 15-inch Navnet System (GPS, Chartplotter), linked to:

    • 1 kW sounder

    • Icom 25 watt VHF

    • Magnetic compass

  • Marine CD player with 4 speakers

General

  • Full safety equipment for 8 persons required to satisfy SAMSA category C > 9 m

  • Container with boat’s operating manual, including wiring diagrams, mechanical layout, and manuals for all installed equipment
